Parker 8-8 HBZ-SS CPI Union

by Parker
$28.00
SKU

Notify me when back in stock

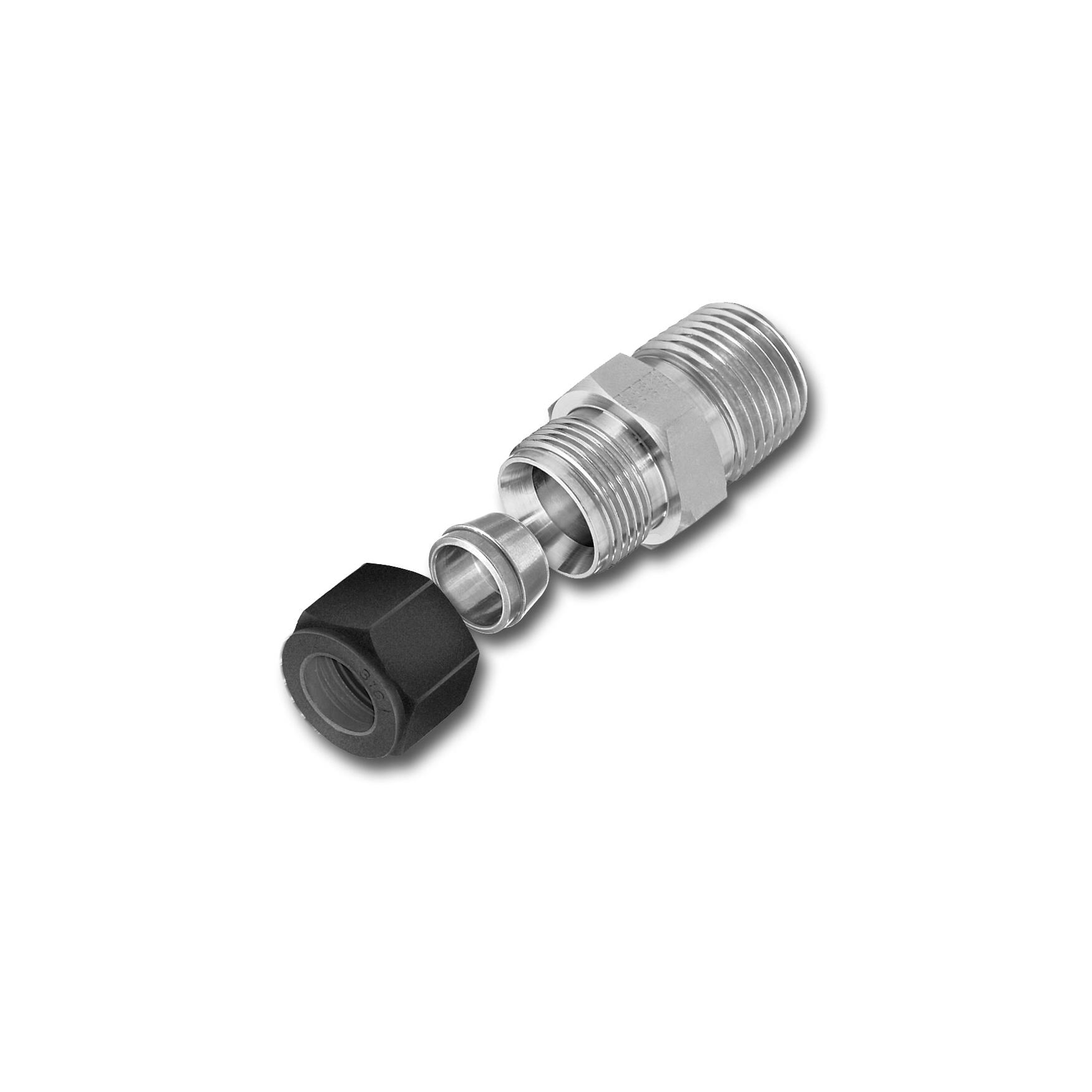

Parker CPI™ single ferrule compression tube fittings are designed as leak free connections for process, power, and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The “spring loaded” effect of the single ferrule creates a constant tension between the fitting body and fitting nut.

CPI™ tube fitting are manufactured from heat code traceable 316 stainless steel.

Industry applications: Chemical Process Control Systems | Oil and Gas Control Systems | Refining Process Control Systems | Pulp and Paper Process Control Systems

Specifications

Tube Outside Diameter 8 mm
Shape Union
Connection 1 Size 8 mm
Connection 2 Size 8 mm
Connection Size 8 mm
Connection 3 Thread Size N/a
Materials of Construction 316 Stainless Steel
Product Style Tube to Tube Union
Connection Type Single Ferrule
Maximum Operating Pressure 10,000 psi, 689.5 bar
Maximum Tube Outside Diameter 25mm, 2"
Assembly --
Maximum Operating Temperature 605 C / 1,200 F
Minimum Operating Temperature -255 C / -425 F
